system |
| |

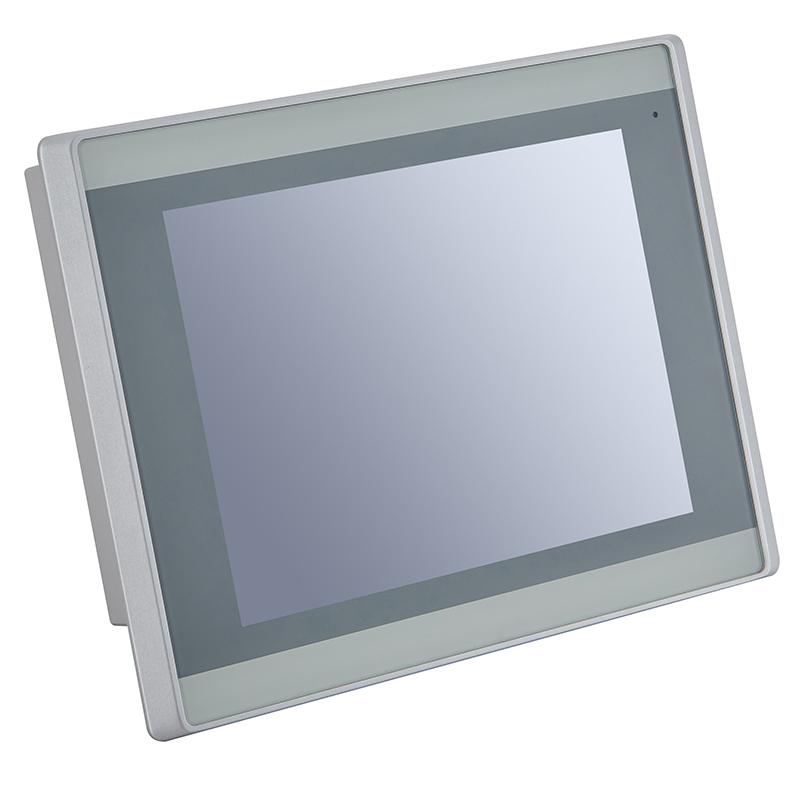

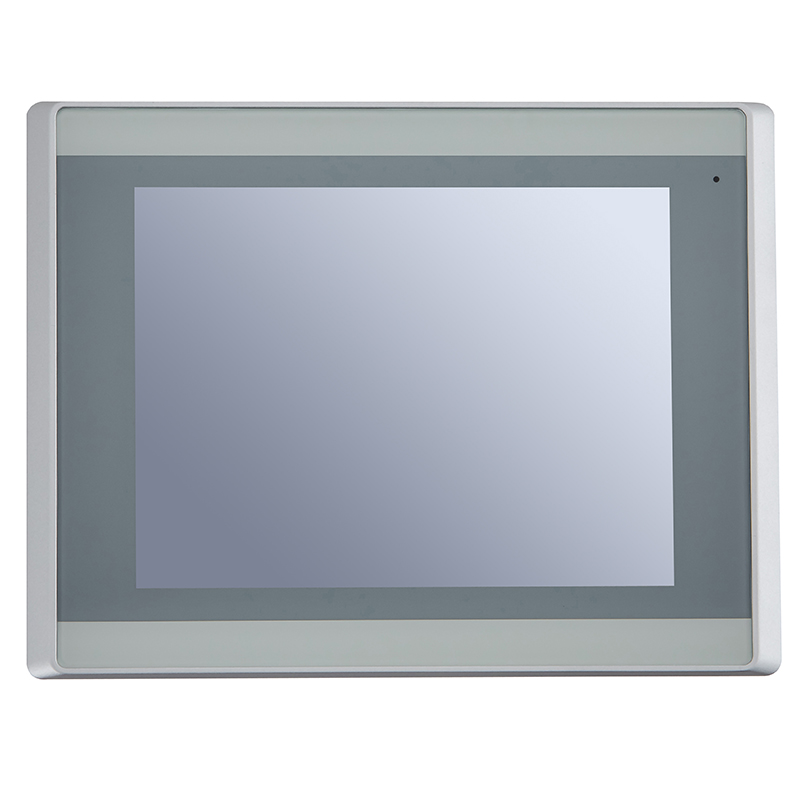

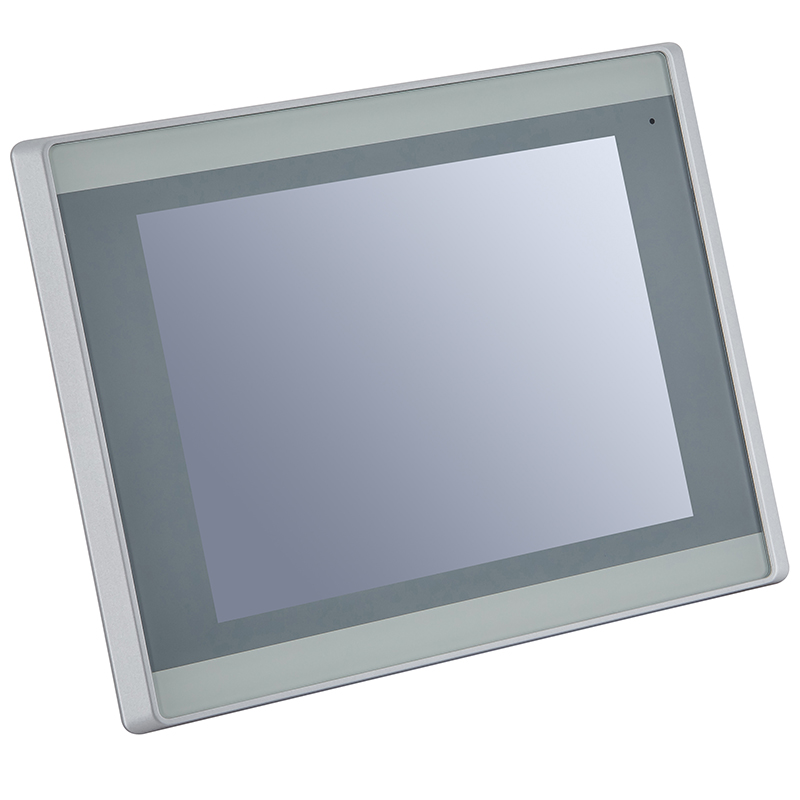

name | 8 inch industrial tablet computer | |
processor | Intel® Celeron® J1900 2.0GHz Turbo to 2.42GHz | |
system memory | One SODIMM slot, maximum support 16GB | |
network | 2 x GbE RJ45 Realtek 8111H | |
I/O interface | 3 x USB2.0, 1 x USB3.0 2 x DB-9 COM1&COM2,RS-232/485 2 x 3-wire COM3&COM4 RS-232/485 phoenix 2 x 3-wire COM5&COM6 RS-232 phoenix 1 x Audio Line-out 2 x 8Ω 1W output (optional) 1 x phoenix remote switch can be connected to the optional port 1 x HDMI 1 x 12bit GPIO (optional) | |
storage | 1 x SmASTAAT (A2.5” SATA ) | |
expansion slot | Mini-PCIe x1 half-full card, support onboard WSIIMF card I bluetooth, support 3G/4G module | |
watchdog timer | 1~255 seconds programmable setting | |
support system structure | Windows® 7 /8/10, WES 7, LINUX | |
|
| |
material | aluminum | |
installation method | VESA 75/panel mount | |
size | 230.3 x 177.3 x 50.5mm | |
weight use environment | 1.7KG | |
|
| |
Operating temperature | 0°C ~ 60°C | |
storage temperature | -30°C ~ 70°C | |
storage humidity power supply | 10~90% @30°C, non-condensing | |
|
| |
power input display screen | DC 9 ~ 36V 2-pin Phoenix terminal | |
|
| |
LCD type | 8" TFT-LCD | |
resolution | 800 x 600 (optional 1024 x 768) | |
maximum color | 16.2M | |
brightness | 250 cd/m² | |
Angle of view (CR>=10) | -85~85° (H), -85~85° (V) | |
backlight | led | |
Backlight life (hours) touch screen | 30,000 | |
|
| |
type | 5-wire resistive | 10 point capacitive screen |
Transmittance | 78% | more than 85% |
service life | 10 million clicks with 250 grams of strength | Hardness 7H |
